Alfred Rosa - TR-4 Builder

Yoke Controls for Cruiser

(Click on any image for full size view.)

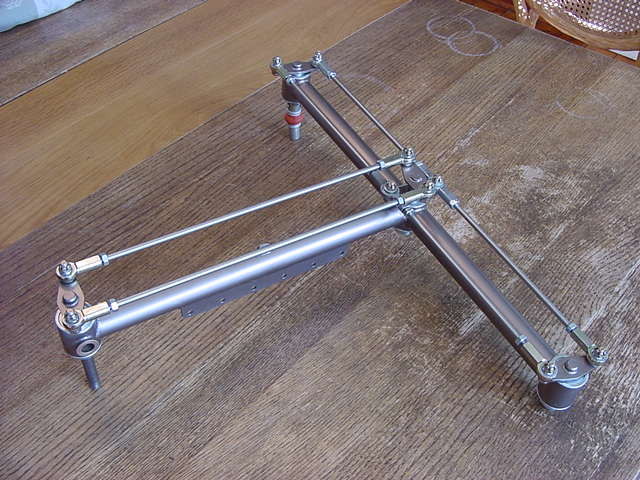

Control column with bearings
and push rods.

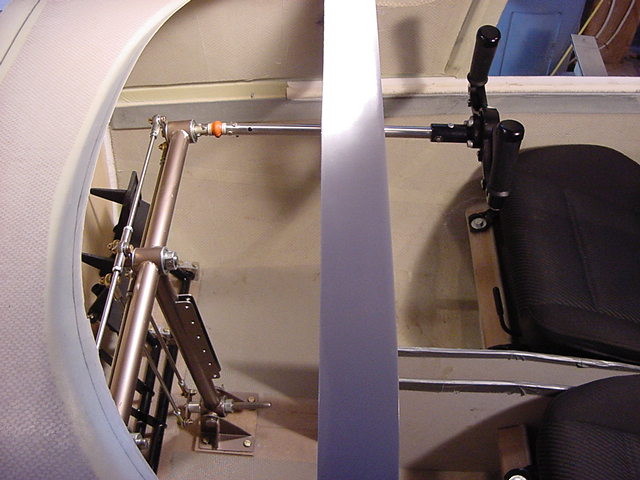

Controls in position.

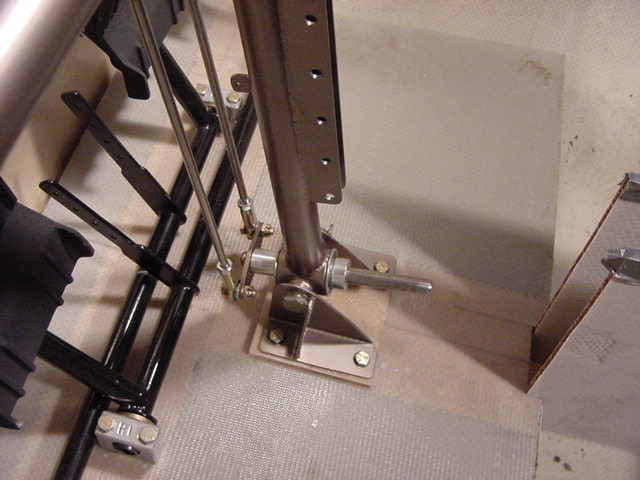

Mounting brackets have pins made
from 1/2" AN bolts which the column

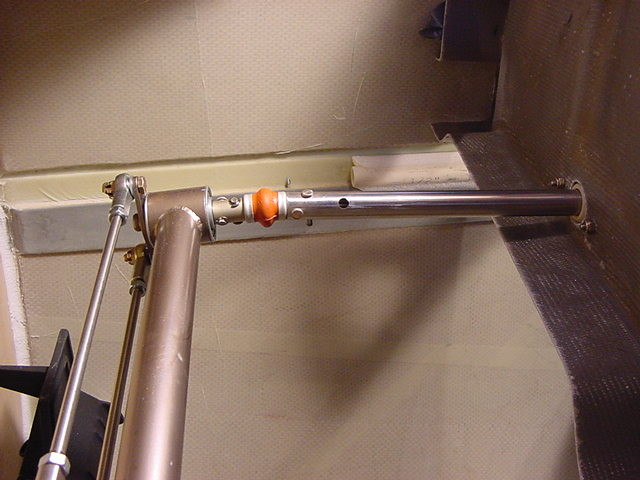

swivels on.		 U-Joint linkage. The system uses a U-Joint
at each control wheel shaft and one at the
base for aileron torque tube linkage. The
hole in the shaft will have a rubber grommet
for mic wires to the PTT switch on the
control wheel.

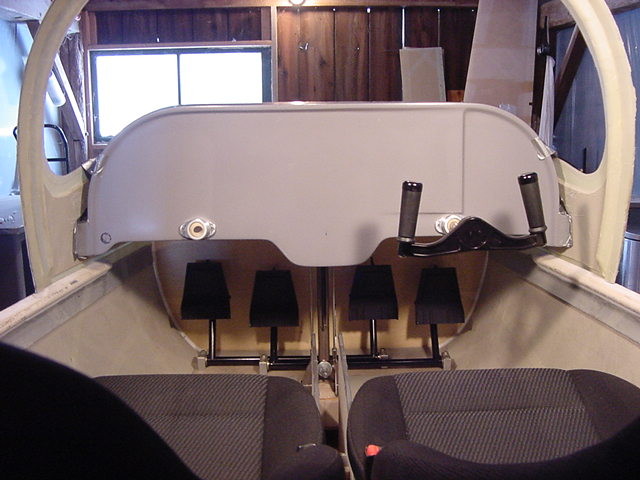

Panel with one ACS control wheel in
place ( another on the way).

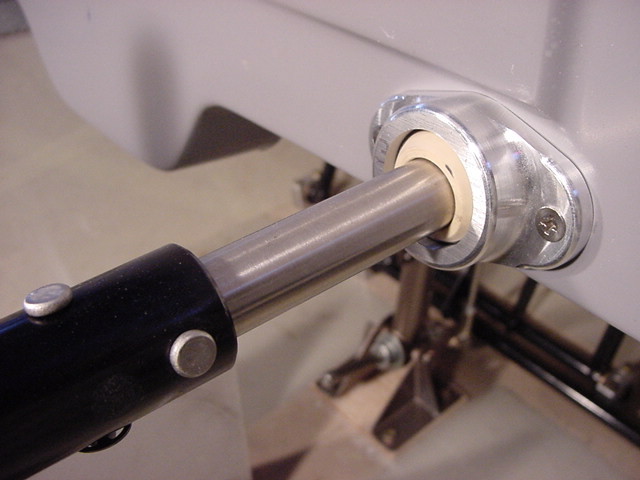

Control wheel shaft ( .065 stainless )
passes through panel mounted nylon
eyeball bearing.
