N247BR

Back Seat & Baggage Area


Rear Seat Bulkhead

Rear Seat Bulkhead Rear Seat Bulkhead

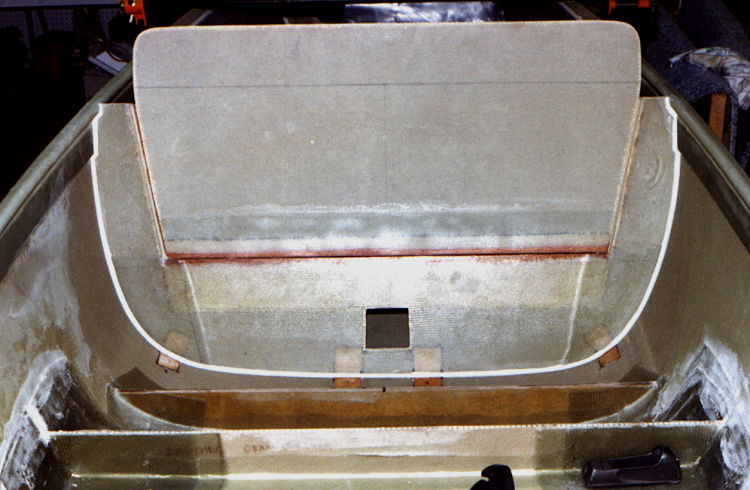

Back of rear seat showing plywood bracing and
seatbelt hard points.

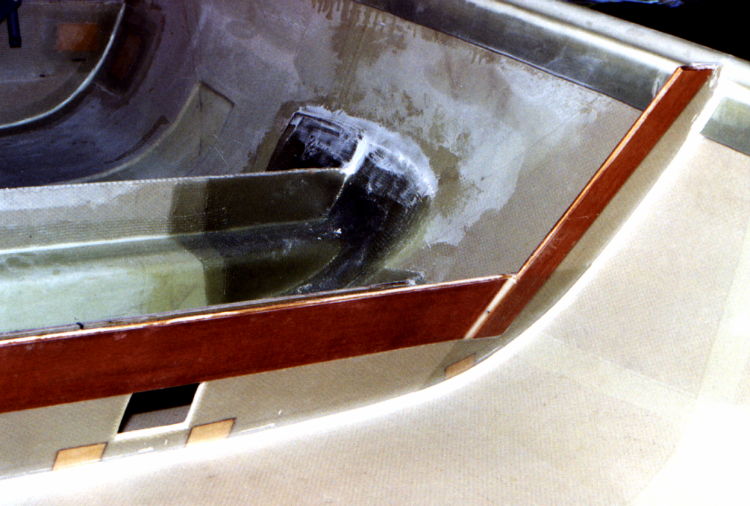

The full bulkhead is double layered with glass to add strength for
Rear Seat Bulkhead Rear Seat Bulkhead

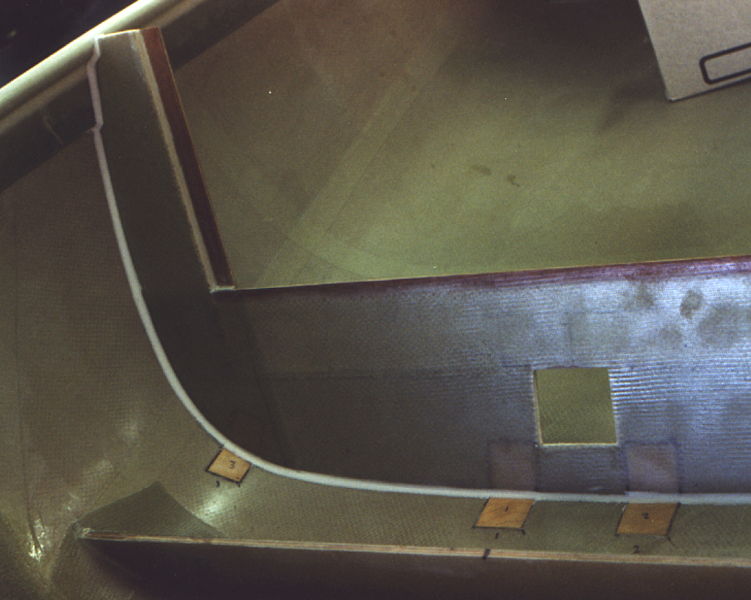

The seat belt mounts are installed in the bulkhead and the fuselage bottom.

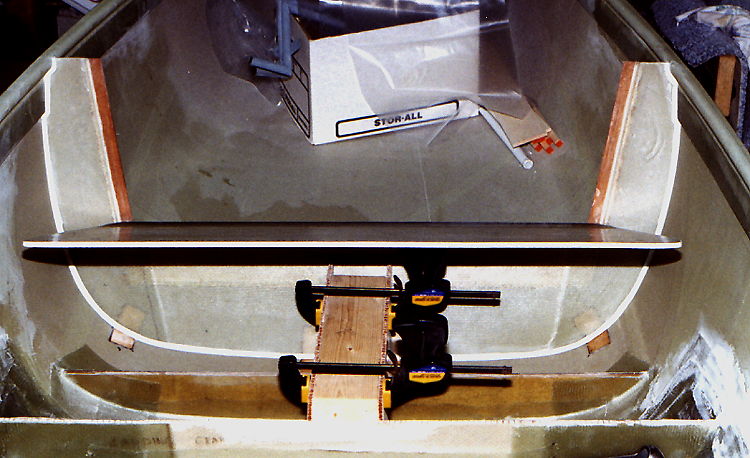

The seat Back fits between the opening of the bulkhead against the flange installed aroung the opening.
Rear Seat Bulkhead Rear Seat Bulkhead

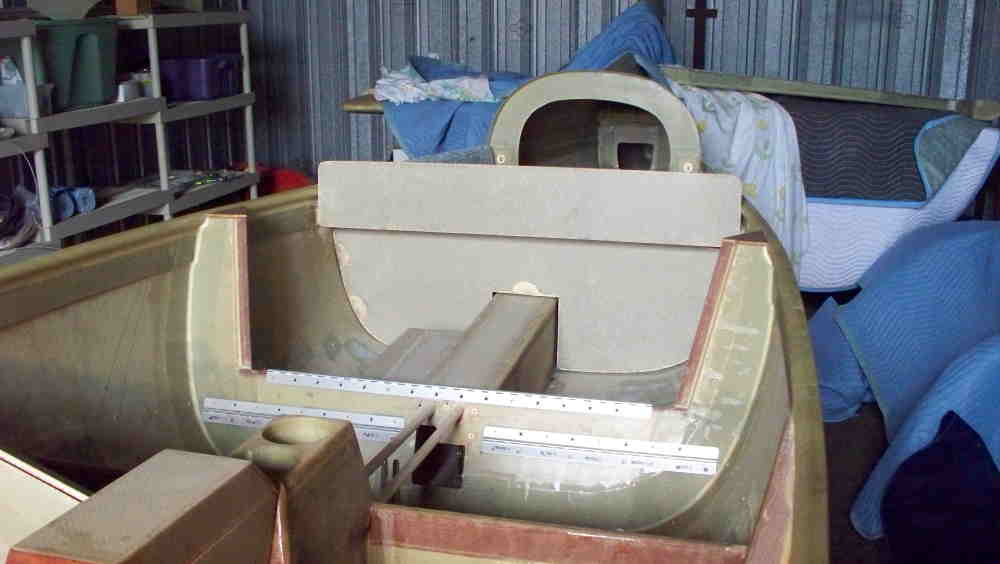

The completed rear seat bulkhead can be seen with the piano hinges installed for the fold down back and the flip up seat bottoms.

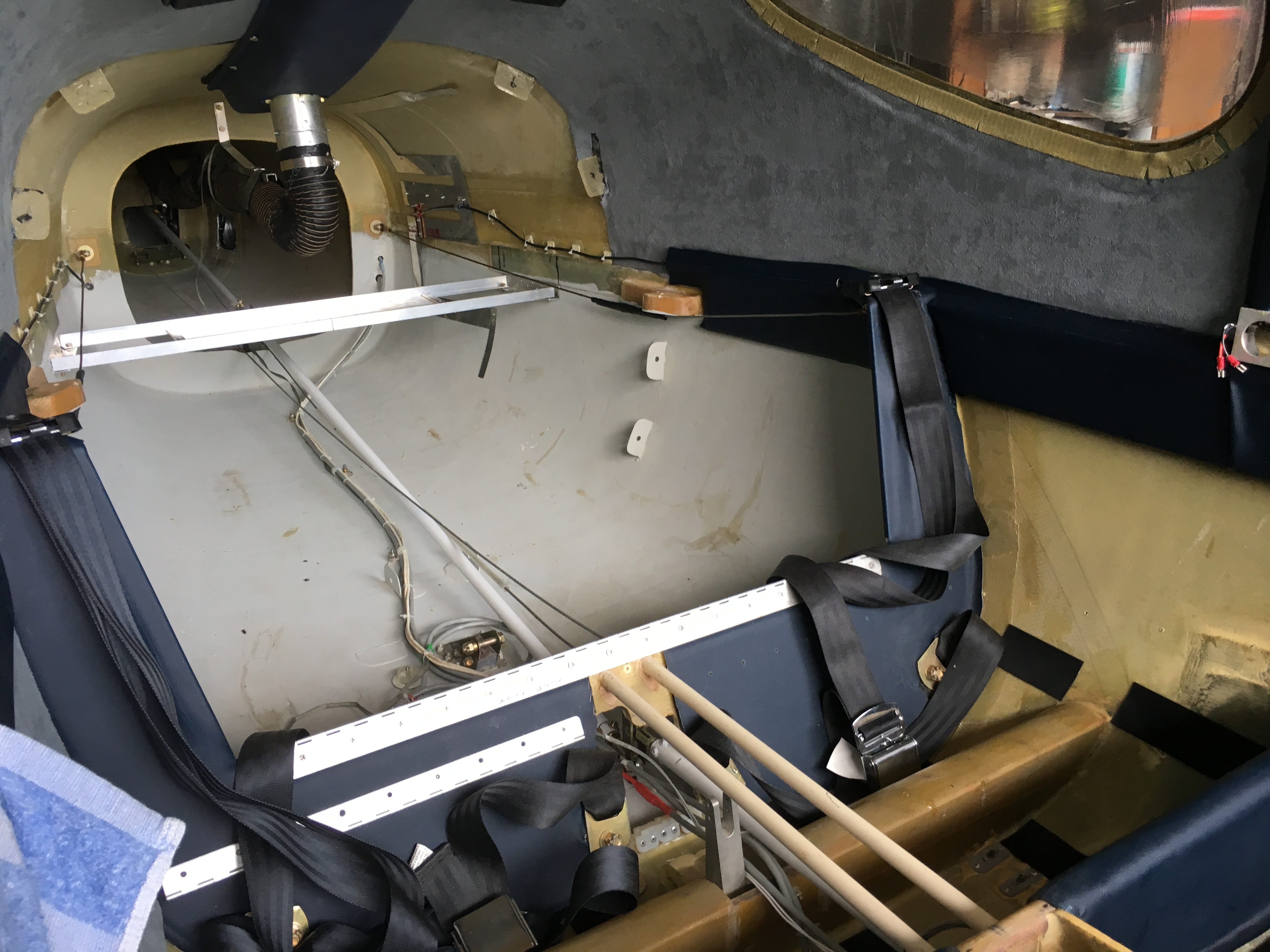

The completed bulkhead was upholstered and the seat belts installed.  I ended up removing the piano hinge for the seat back and replacing with a spring loaded hinge that allows the seat back to be removed easily.

These photos show some of the details of the rear seat installation.  Included is the plywood reinforced flange and the full width plywood insert for mounting the seat bottoms and seat back as well as the idler arm for the elevator controls.  The seatbelt mounting points can also been seen prior to being glassed into place.
