 Instrument Panel and Wiring


My Panel Construction - Part 2

Instrument Panel The BlueMountain Processor Panel will be mounted on a shelf in front of the Pilots Panel.  In front of the processor is a power panel and the Aproach Systems Avionics Patch Panel.

BLUE MOUNTAIN HAS CLOSED
AND NO LONGER SELLING ANY
PRODUCTS...SUPPORT HAS
ALSO ENDED!

Instrument Panel The Pilots Panel will contain the BlueMountain EFIS System, BlueMountain Control Panel, and the DVD Disk Reader.

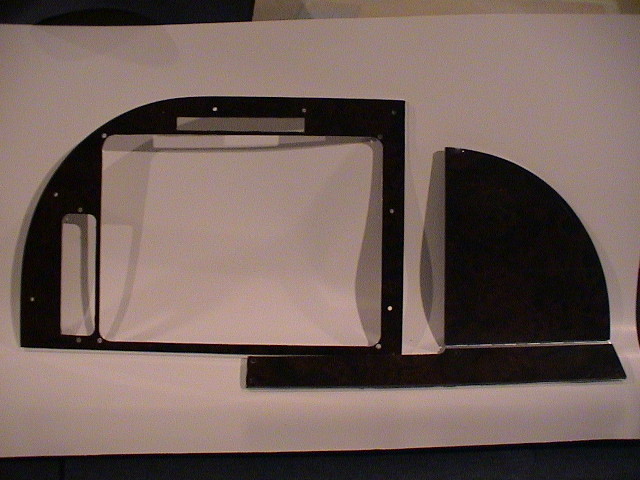

The Glove Box Panel and Panel Strip will cover the Glove Box and provide a mount for a handheld PDA device.

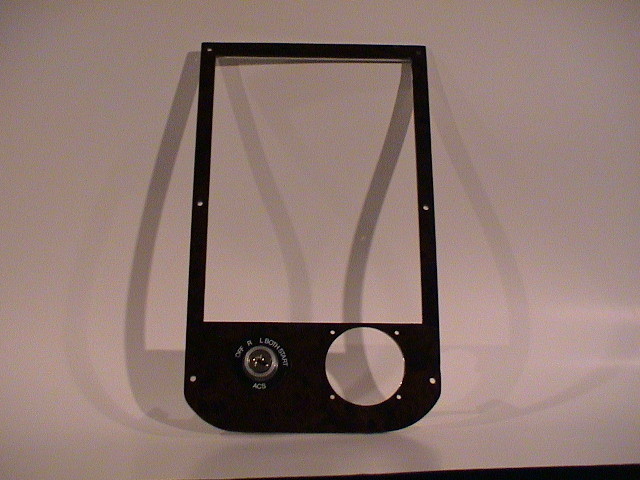

Instrument Panel The Center Avionics Panel contains the Starter Switch, Chronometer and the Avionics Stack.

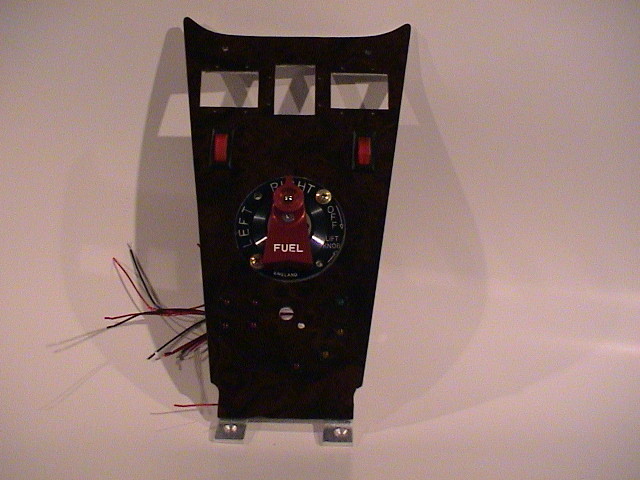

Instrument Panel This Center Console panel contains the following:

      Trim Switches - Aileron, Elevator, and Rudder
      Pitot Heater Switches
      Fuel Selector Valve
      Door Status Indicators
      Flap Switch and Status Indicators
Instrument Panel This lower panel contains the Auxiliary Power Outlets, the Co-Pilots Headset and Microphone connections, and the Air Controls.

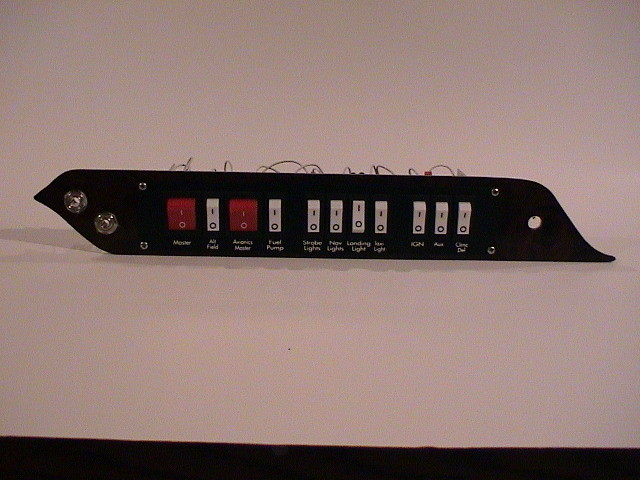

Instrument Panel This lower panel contains the electrical power panel, the pilots Headset and Microphone connections, and the Emergency Brake release.

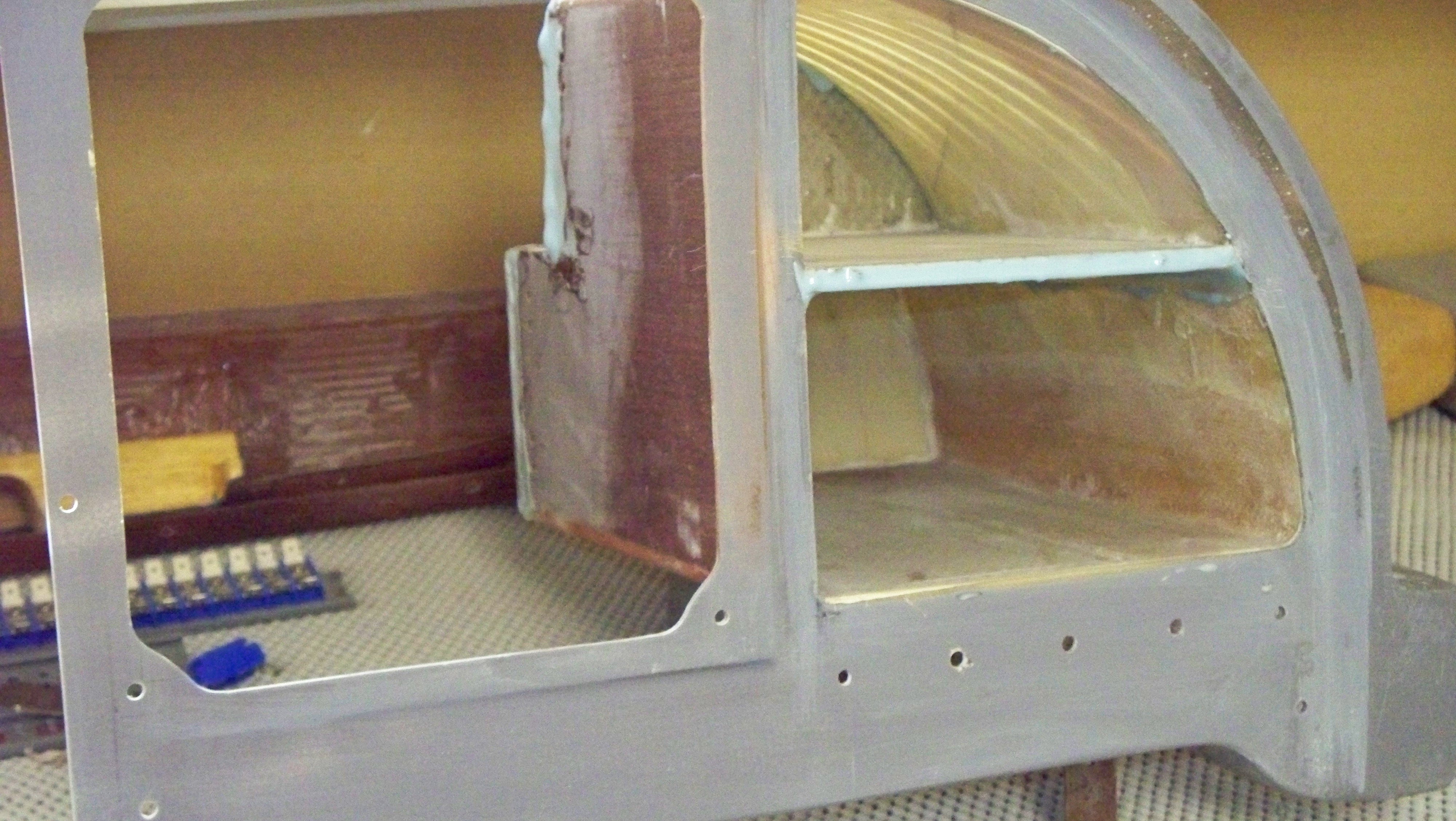

Instrument Panel I finally closed out the glove box again after cutting off some of the back and top to make it fit properly.  I added a shelf to give more usable space.  I will add a small amount of glass around the edges to help hold everything together.  My electrical connection panel will be mounted on the side which is 1/4 inch plywood.  More pictures to follow.
