In The Beginning

Pre-Finish +

Fuselage Dolly


Rudder / Vertical Stabilizer

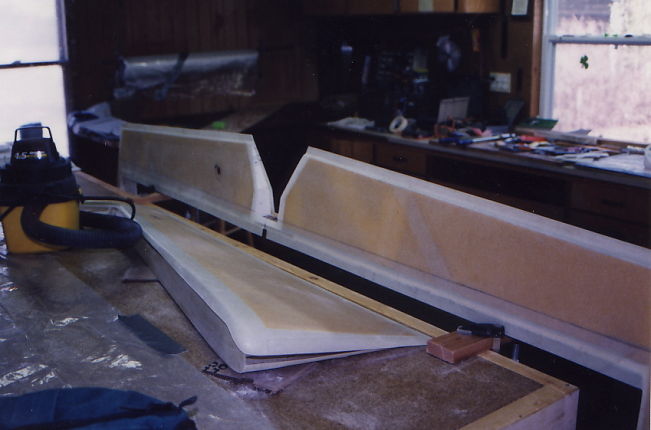

Elevator and initial layout of rudder.

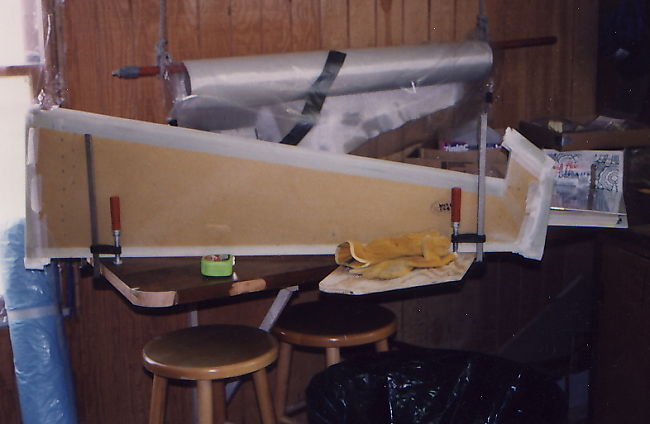

Trial fit of both sides of rudder.

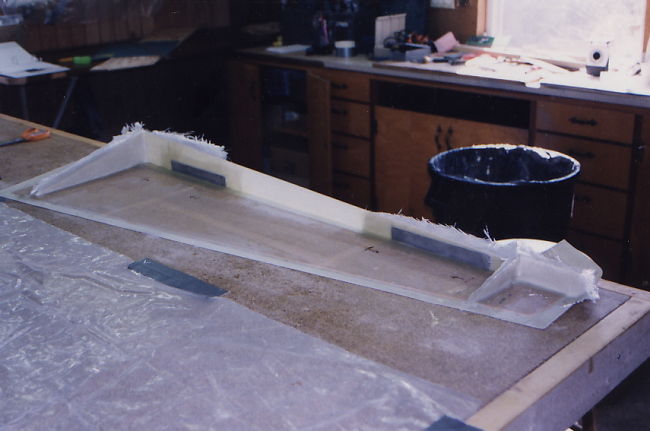

Glassing inside of rudder.

Rudder Close out.

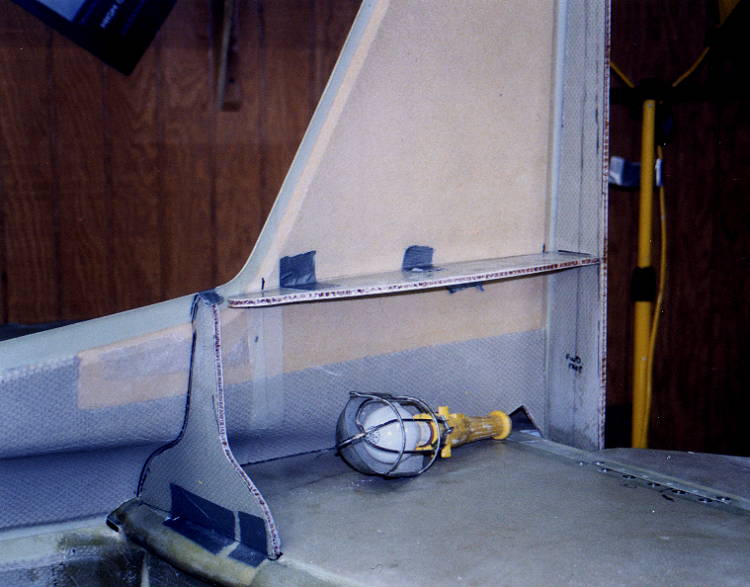

Fitting Ribs with light inside & other skin on.  Look
down from the top to check clearances.

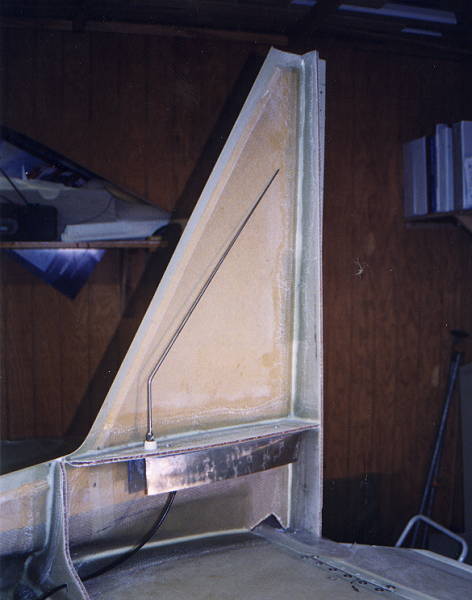

Communications Antenna Installed.

Hope it WORKS!

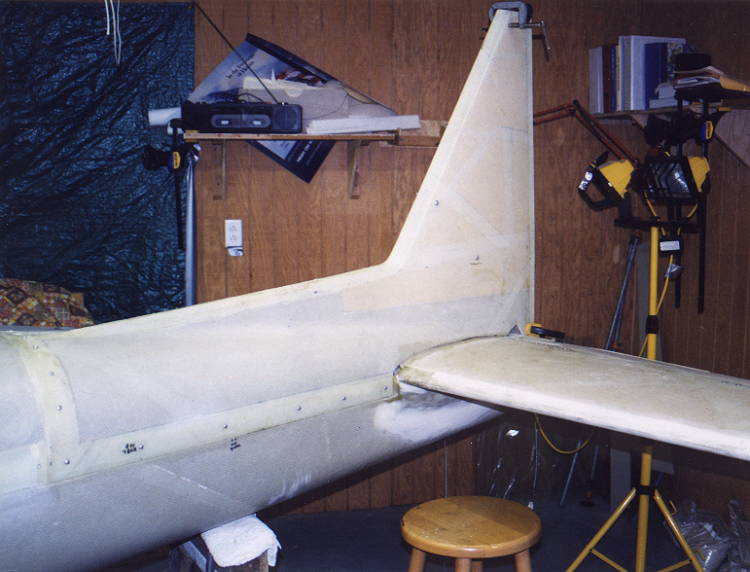

Tail screwed on.  Used 2 bolts thru vertical to
clamp together while flox setup.

January 2000 Updates

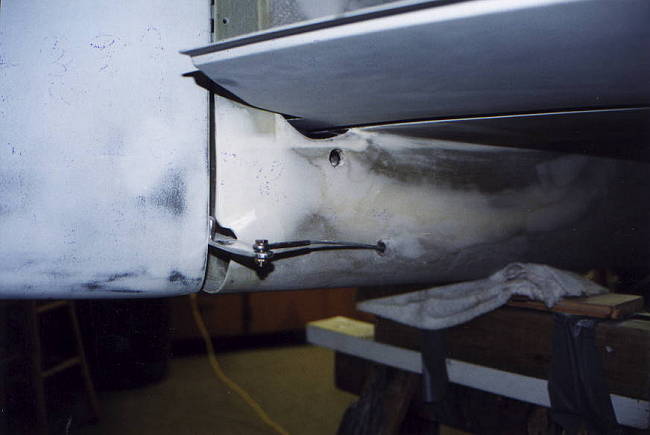

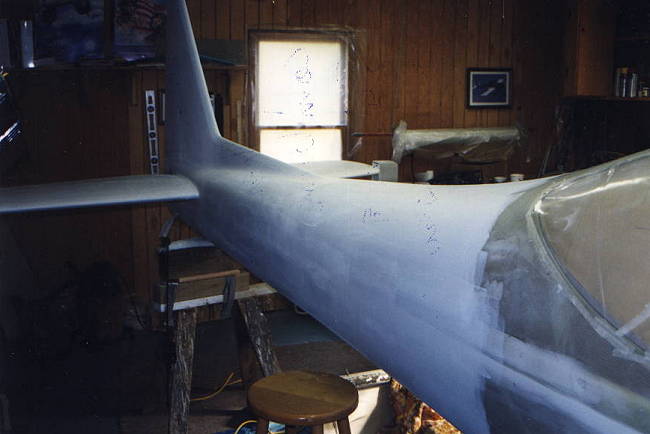

Rudder Cable Connection 1St coat of Primer.  We are paint-
int the completed aft end so we
can put it into the cold part of the
garage.  Front 1/2 will be in the
workroom for panel, engine, etc.

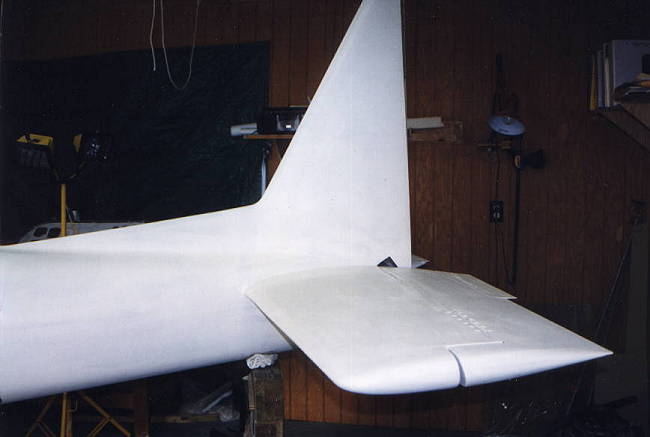

Second Coat of PolyFiber Primer

After starting with Polyfiber primer
they have changed to a combined
primer / UV combination.
